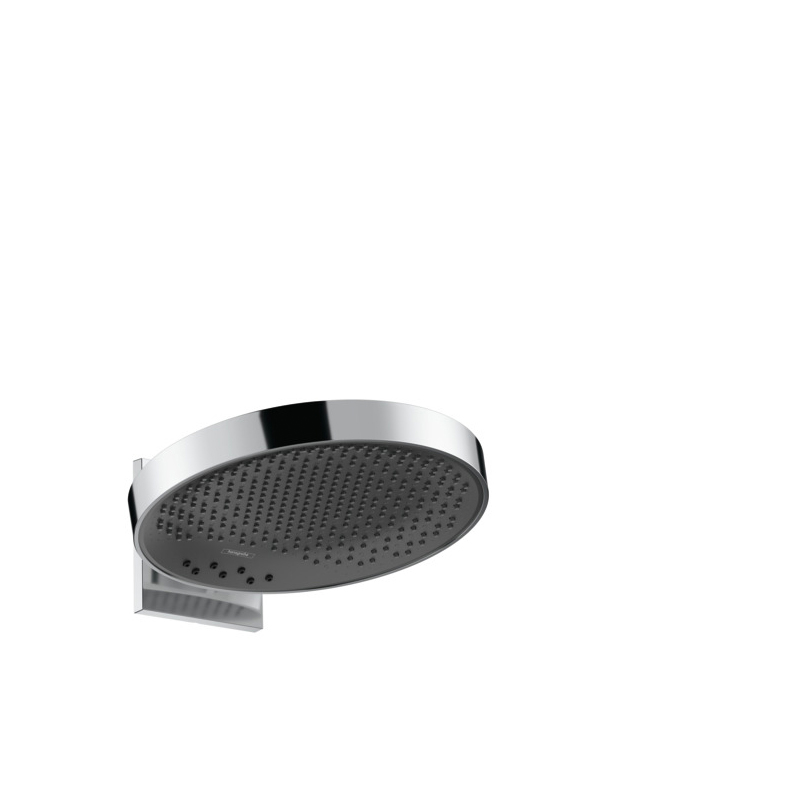

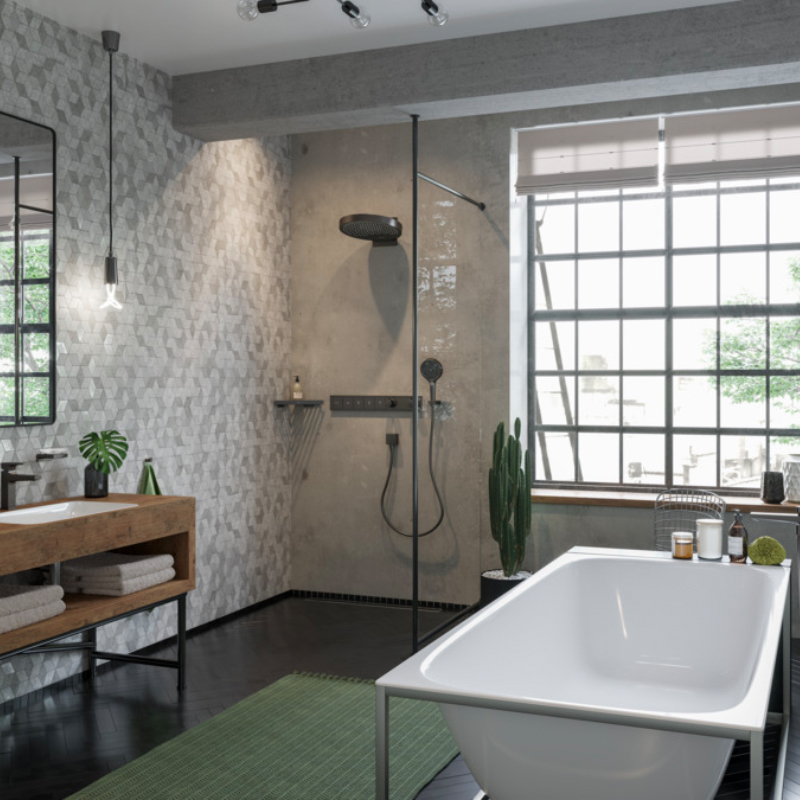

• consists of: overhead shower, wall connector

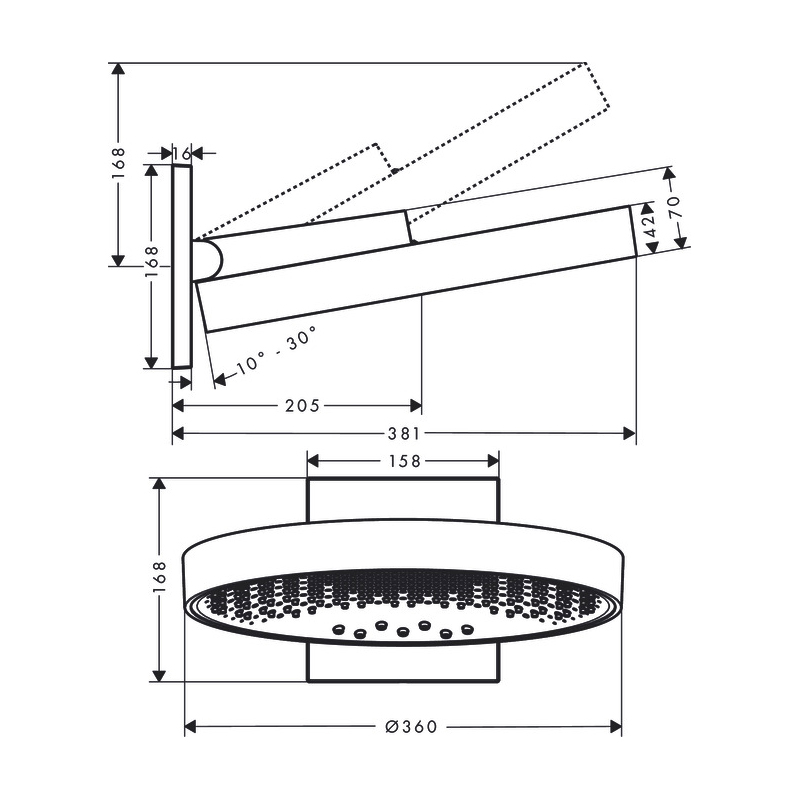

• shower head size: 360 mm

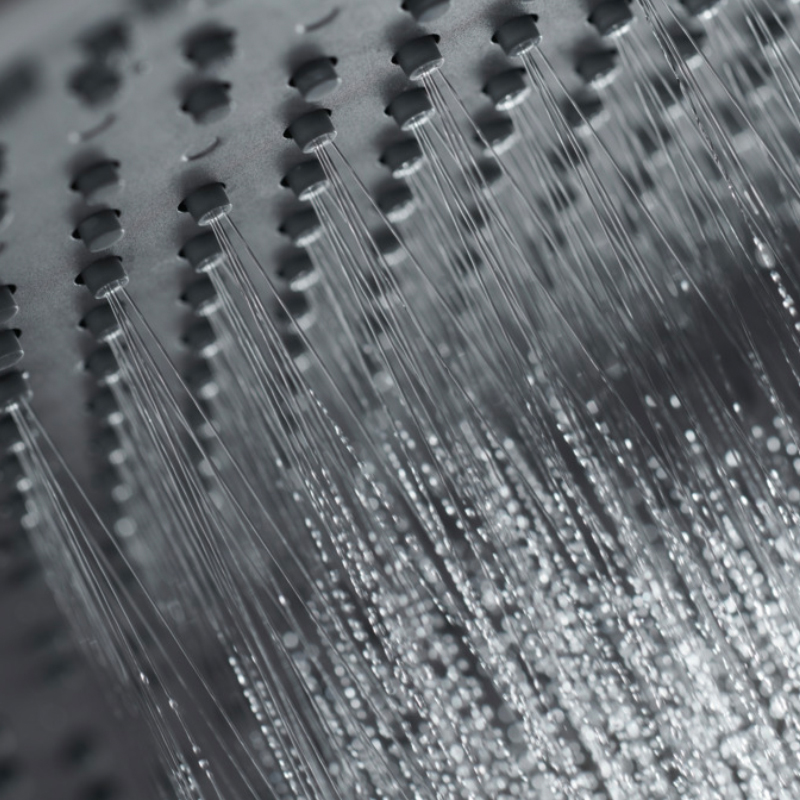

• spray type: PowderRain, Intense PowderRain, RainStream
• projection 381 mm
• middle spray disc: 205 mm
• shower head vertically inclinable by 10-30°
• maximum flow rate at 3 bar: 28,1 l/min
• flow rate RainStream spray (at 3 bar): 16 l/min
• flow rate Intense PowderRain (at 3bar): 18 l/min
• flow rate PowderRain spray (at 0.3 bar): 20 l/min
• the 3 spray zones must be controlled via 3 valves or a diverter valve with 3 outlets
• spray disc surface: graphite
• material spray disc: aluminium
• overhead shower removable for cleaning
• frame: metal
• installation: wall-mounted – for installation on iBox
• connection dimension: DN15

Basic Set iBox Universal 01800180
